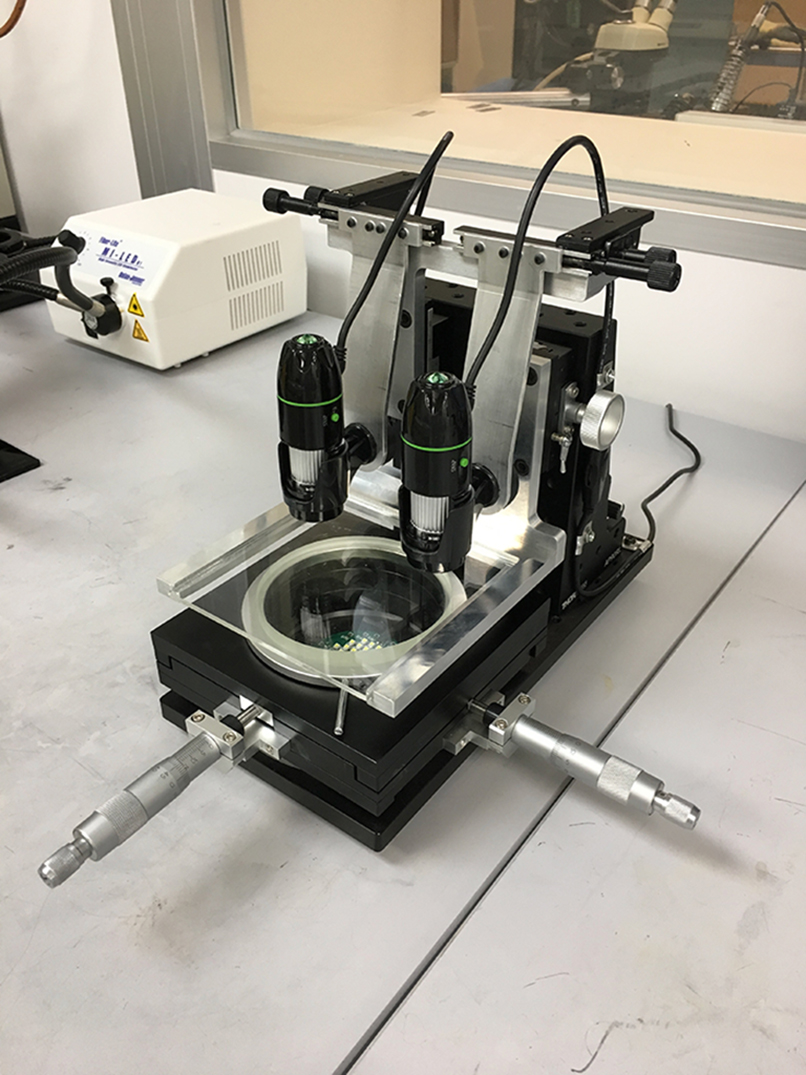

PDMS Alignment Tool
The PDMS Alignment Tool is used to align two layers of PDMS with coordinated features, such as valves or vias. USB cameras are connected to a computer for simultaneous video capture.
This alignment tool was built from a design published by Dr. Jianping Fu: Desktop aligner for fabrication of multilayer microfluidic devices
![PDMS Alignment Tool](/sites/nanofab/files/images/2021/PDMS_Aligner.jpg)
